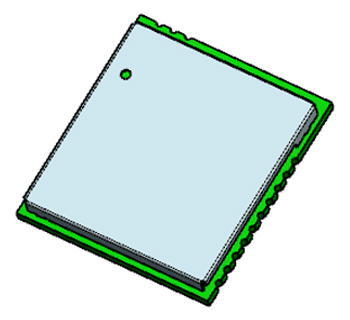

LPWA Module TLT01CS1
1. General Description
TLT01CS1 is LPWA(Low Power Wide Area) LoRaTM Module, developed by SoluM. TLT01CS1 offers several peripherals so it could be connected with lots of sensors for sensing temperature, humidity and so forth at home, buildings and factories. Also TLT01CS1 is able to transmit data of connected sensors via LoRaTM network to long distance server. For example, street and security lamps could be on/off by using LPWA technology. SoluM LPWA device is right solution for communicating between IoT devices.

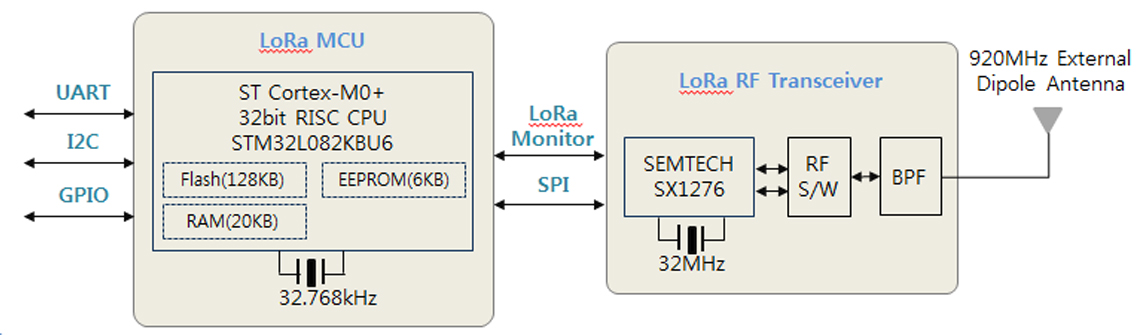

1.1 Block Diagram
1.2 Features
- Wireless Communication based on LoRaTM Technology
- Operating on 920MHz Unlicensed ISM band
- AES 128-bit H/W Encryption Engine
- Low Power Consumption MCU : Cortex- M0+
- Outline Dimension: 20*22*2.7 mm (W*L*H)
- RoHS compliant
- Various peripheral
- 128kB internal Flash Memory
1.3 Typical Applications
- Wireless Communication based on LoRaTM Technology
- Operating on 920MHz Unlicensed ISM band
- AES 128-bit H/W Encryption Engine
- Low Power Consumption MCU : Cortex- M0+
- Outline Dimension: 20*22*2.7 mm (W*L*H)
- RoHS compliant
- Various peripheral
- 128kB internal Flash Memory
2. Specification
2.1 Product Specification
| Item | Description |
|---|---|
| Size | TYP. 20*22*2.7 mm (W*L*H) |
| Operating Voltage | 3.0~3.6V |
| Memory | RAM : 20KB, Flash 128KB |
| Wireless Communication | 920MHz ISM Band – LoRaTM Technology |
| ESD(Human Body Model) | JEDEC JS-001 Standard ±1kV , Class 2 |
2.2 Absolute Ratings
| Item | MIN | TYP | MAX | Unit |
|---|---|---|---|---|
| Supply Voltage(VCC_RF, VCC_BB) | 3.0 | 3.3 | 3.6 | V |
| Operating Temperature | -20 | 65 | ℃ | |
| Storage Temperature | -30 | 85 | ℃ |
2.3 Power Consumption
| Item | Parameter | SPEC | Unit | Condition | ||
|---|---|---|---|---|---|---|
| MIN | TYP | MAX | ||||
| TX Mode | 31 | mA | Average consumption | |||
| RX Mode | 11 | mA | Average consumption | |||
| Sleep Mode | 10 | uA | Average consumption | |||
2.4 RF Characteristics
| Item | Parameter | SPEC | Unit | Condition | ||
|---|---|---|---|---|---|---|
| MIN | TYP | MAX | ||||
| TX | Transmit Frequency | 917 | 923.5 | MHz | ISM Band | |
| Transmit Power | +14 | dBm | Including ANT Gain | |||
| Frequency Deviation | ±25 | KHz | 25℃ | |||
| RX | Receiving Sensitivity | -123 | dBm | Conductive SF=7,BW=125KHz | ||
