전력량계 검침장치
Power Meter AMR

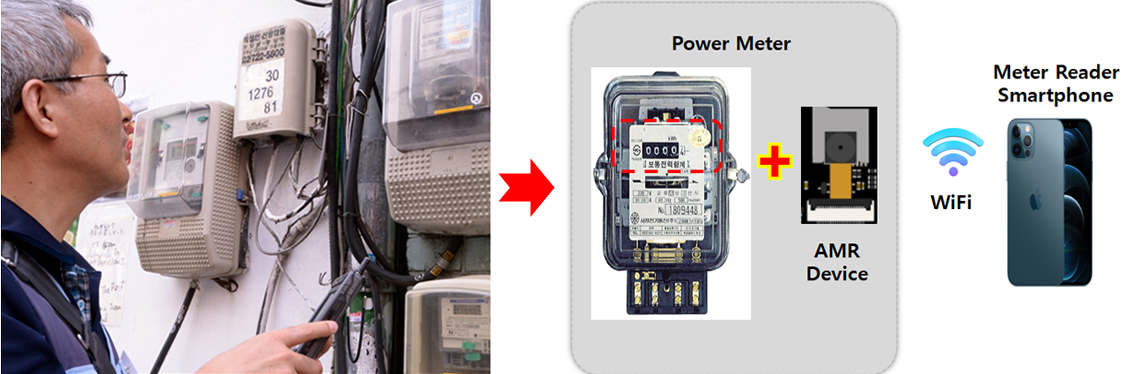

An AMR device that is installed in an area that is not easily accessible or that acquires the meter reading information of the strategic meter by attaching an optical AMR device to the watt-hour meter for convenience and controlling it with the meter reading person’s cell phone

AMR Device
- Photo taking function (Flash On/Off function)
- Video recording function
- Wi-Fi connection
- Power saving function
Smart Phone App
- Hotspot Control, User management function
- Photo/Video recording function (Flash control)
- Power meter management function
시스템 구성도

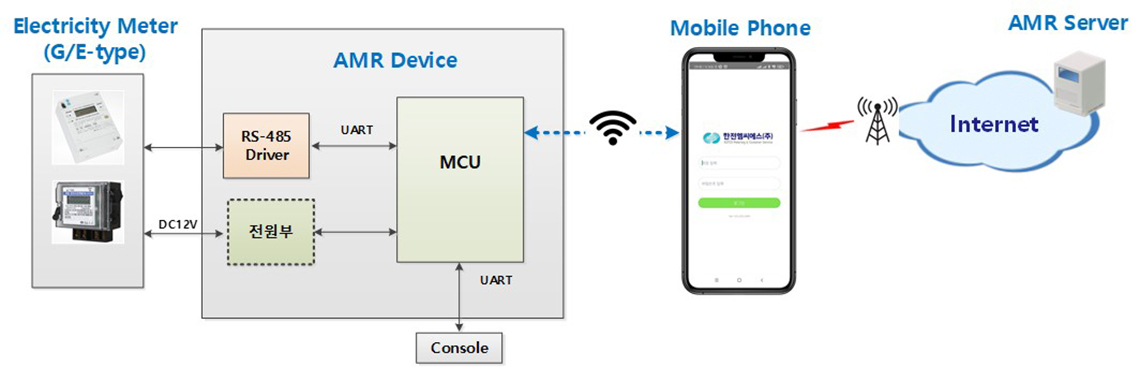

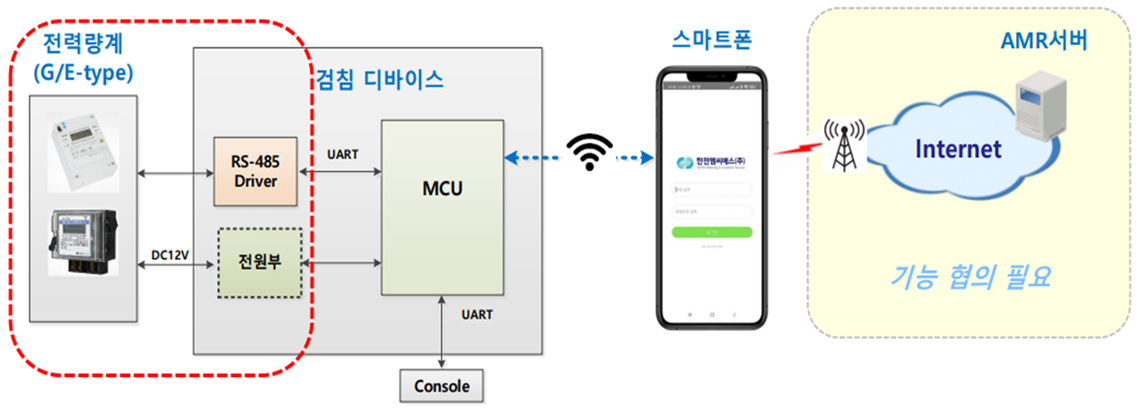

검침 디바이스 기능
- RS-485 COSEM Client 기능 : HDLC로 전력량계(G/E/Ae-Type)의 주요 정보(제조정보, 일자)와 검침정보(당월, 전월 사용량)를 수집
- WiFi Station 기능 : 스마트폰 AP에 접속 (SSID/PWD)
- Web Server 기능 : 스마트폰 앱과 통신
스마트폰 앱 기능
- WiFi AP 기능 : HotSpot 기능
- 검침 디바이스 관리 기능
- 검침 정보 수집 및 저장 기능 (CSV 파일 저장 등)
- AMR 서버 연동 시 정보 저장 기능 (협의)
무선(Wi-Fi) 검침 장치(RS-485 통신)

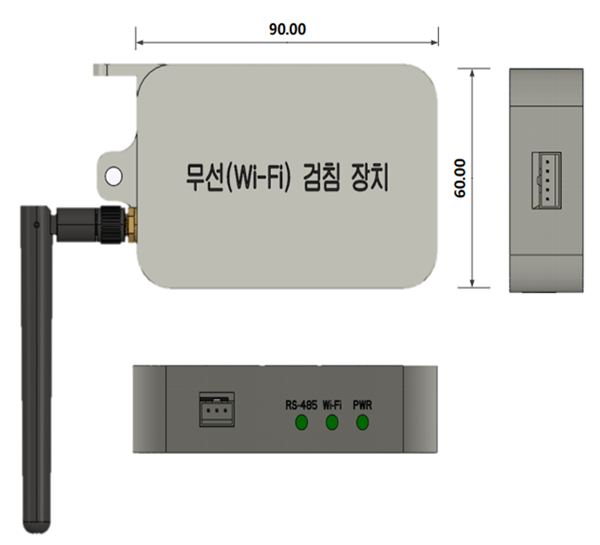

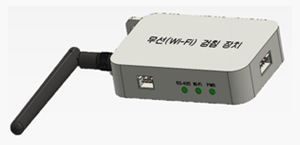

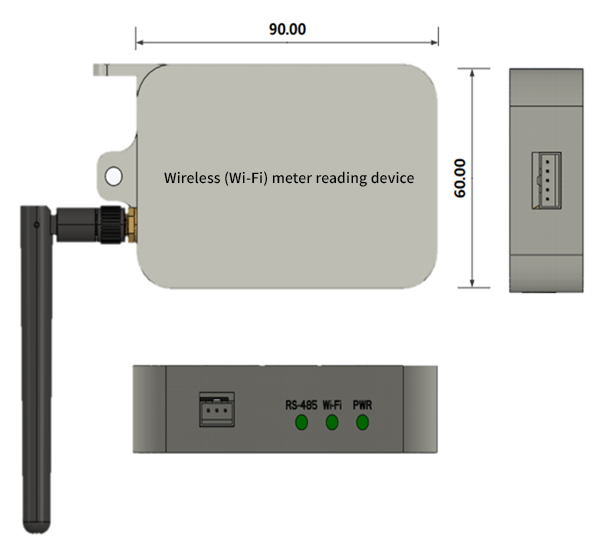

장치 구성
- 전원 입력 커넥터(6P, Lock Type) : DC12V - GND, RS-485(A/B), LED
- 콘솔 포트(3P, Lock Type) : RS-232 TX/TX (Optional)
- 안테나 : 2.4Ghz 외장 안테나
- LED : Power Input, Wi-Fi 접속 상태, RS-485 데이터 송수신

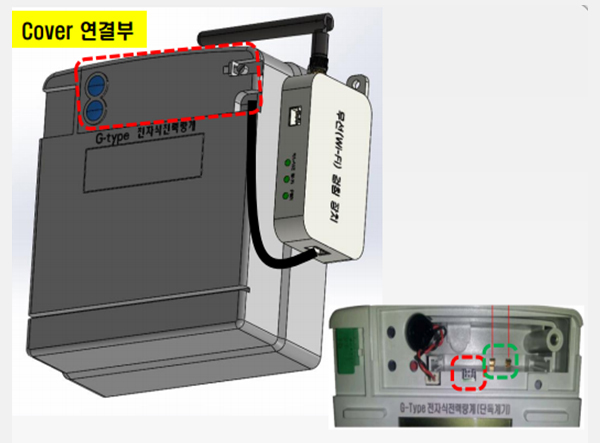

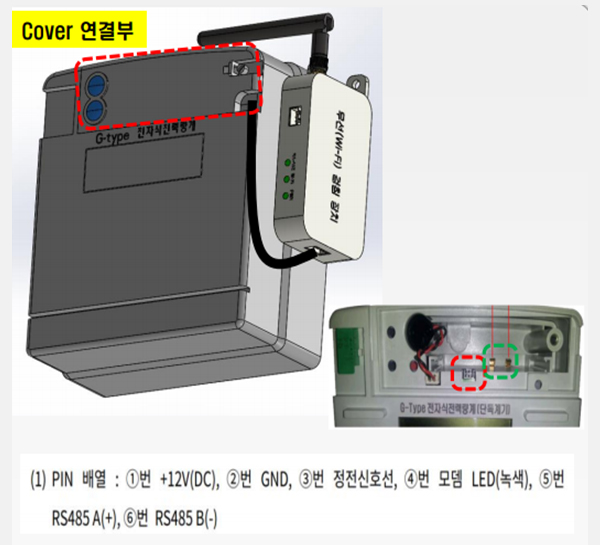

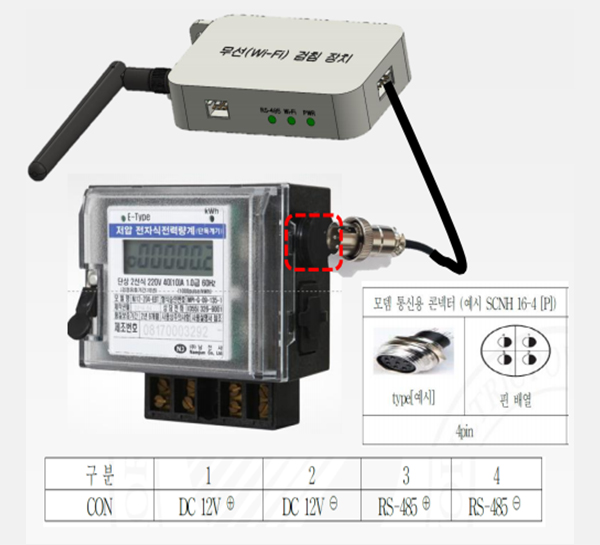

전력량계 RS-485 단자 및 DC 전원 연결
G-Type

E-Type

RS-485 검침 장점 (vs 영상검침)
구분 | 장점 | 설명 |
---|---|---|
검침 정확성 | 100% 일치 |
|
거치 편의성 | 계량기 함체 내에 위치 |
|
검침 편의성 | 검침원 판독 필요 없음 |
|
크기 | 소영화 |
|
가격 | 상대적으로 저가로 구현 |
|
