MOBINUS

NFC 안테나

구분 AI etching type F-PCB Type Coil Type
Figure AI etching type F-PCB Type Coil Type
두께 제품 두께 : t=0.12mm (Ferrit Sheet를 포함한 제품 Assembly 두께를 말함.)
안테나 재질 알루미늄 시트 동 시트 동 코일

NFC 안테나 사이즈에 따라 가격 변동폭 큼(Ferrite Sheet 원재료 비중이 높음)

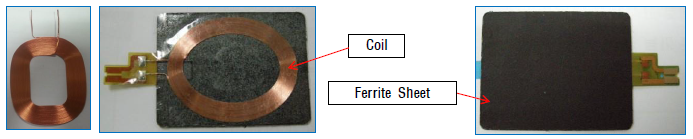

WPC Px : 원형코일 권선 WPC
AI etching type

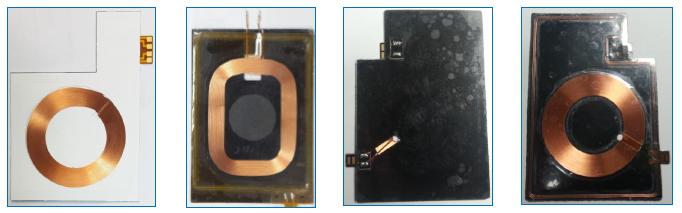

NFC Antenna : 평각코일 Embeded Antenna + 원형코일 권선 WPC
AI etching type

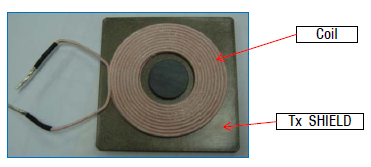

WPC Tx : 원형코일 권선 WPC
AI etching type

Mobile Antenna (1)

구분 Press Type LDS type F-PCB type
Figure Press Type LDS type F-PCB type
Application Press Type LDS type F-PCB type
GSM, WCDMA, LTE, Wimax 외 : Mobile Phone, Mobile Router

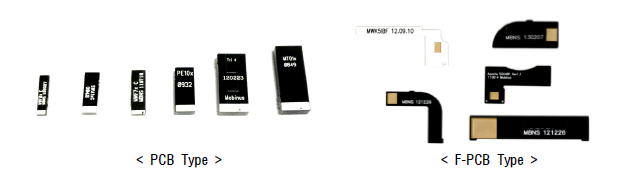

구분 PCB Type F-PCB type Press type
Figure PCB Type F-PCB type Press type
Application PCB Type F-PCB type Press type
GPS, Wi-Fi, BT 외 : Mobile Phone, Mobild Router, 산업용 PDA

Mobile Antenna (2)

Chip Antenna
  • Easy to intergrate
  • Low profile design for use with no ground beneath the antenna
  • High efficiency
  • Light weight
  • Intended for SMD mounting
  • Supplied in tape on reel
  • Size & Shape : Various Size & Shape ard available for Customer's Device State
  • Frequency : Multi-Band (Single/Dual/Triple/Quad/Penta Bands) is Available
    Various Compounded Frequency Bands are bulit into the Mobinus's Antenna
  • Application Band : GSM, DCS, PCS, PHS, CDMA, WCDMA, Wifi, Wibro, Wimax, GPS, LTE(FDD/TDD) ... Etc.
Press type
